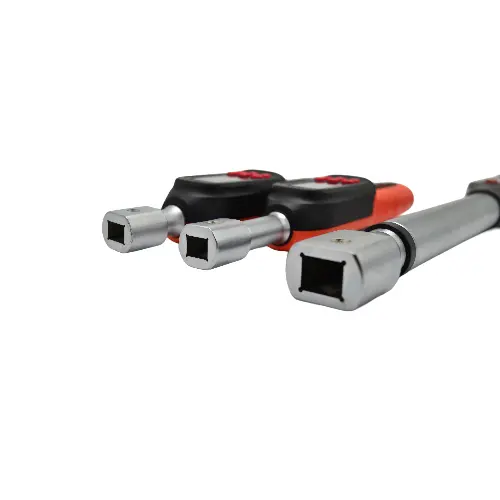

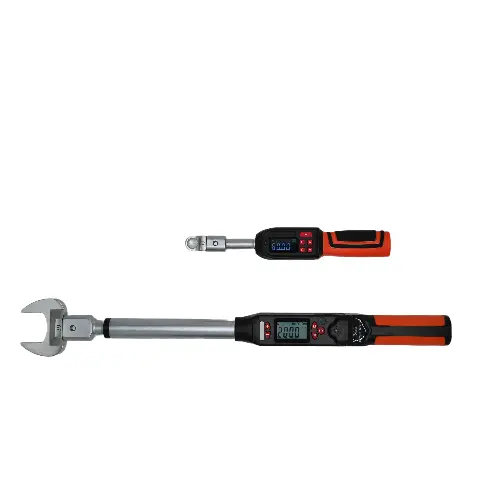

This professional-grade interchangeable head digital torque wrench is designed for high-precision industrial and automotive applications where versatility is key. Featuring a modular design, it is compatible with a vast array of Open-End, Box-End, and Flare Nut inserts, allowing you to tackle fasteners in restricted spaces with ease.

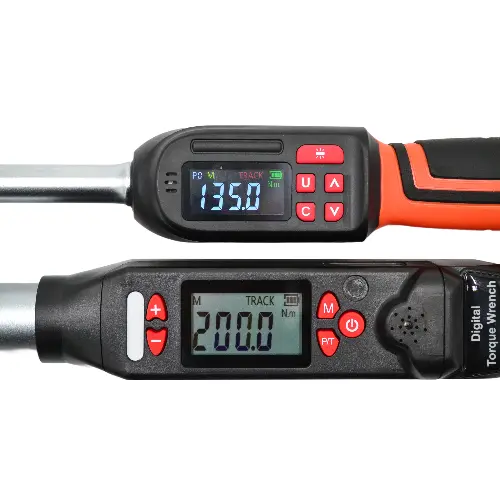

The tool delivers a high-precision calibration of ±2% clockwise accuracy, ensuring critical components are tightened to exact specifications. To enhance operational safety, it features a real-time digital display integrated with an audible buzzer and LED flash alerts that provide immediate sensory feedback as you reach your target torque, effectively preventing over-tightening.
Description
Tags
TENGTUO ELECTRONIC TECHNOLOGY
| item NO: | Range (N.m) | Accuracy (Clockwise) | Accuracy (Counter-clockwise) | Interface Size (in) | Length (mm) | Weight (kg) |
| YBSH-06 | 0.3-6 | ±2% | ±2.5% | 9*12 | 217 | 0.4 |
| YBSH-12 | 0.6-12 | ±2% | ±2.5% | 9*12 | 217 | 0.4 |
| YBSH-30 | 1.5-30 | ±2% | ±2.5% | 9*12 | 217 | 0.4 |
| YBSH-60 | 3-60 | ±2% | ±2.5% | 9*12 | 242 | 0.5 |
| YBSH-85 | 4.2-85 | ±2% | ±2.5% | 9*12 | 242 | 0.5 |
| YBSH-100 | 5-100 | ±2% | ±2.5% | 9*12 | 242 | 0.5 |
| YBSH-135-D | 6.8-135 | ±2% | ±2.5% | 9*12 | 242 | 0.6 |
| YBSH-135 | 6.8-135 | ±2% | ±2.5% | 14*18 | 435 | 1.3 |
| YBSH-200 | 10-200 | ±2% | ±2.5% | 14*18 | 500 | 1.4 |
| YBSH-340 | 17-340 | ±2% | ±2.5% | 14*18 | 625 | 1.6 |
| YBSH-400 | 20-400 | ±2% | ±2.5% | 14*18 | 625 | 1.7 |
| YBSH-550 | 25-550 | ±2% | ±2.5% | 24*32 | 850 | 2 |
| YBSH-850 | 45-850 | ±2% | ±2.5% | 24*32 | 950 | 2.5 |
■ It supports clockwise and counter-clockwise operations,and is
equipped with 9×12,14×18 square-hole socket heads,whichare suitable for various inserts.
■ There are two working modes:peak hold(PEAK)and tracking (TRACK).
■P0-P9 can preset a total of 10 preset torque values for easy switching.
■ The product's usage accuracy is+/-2%(forward
■There is an audible and visual alarm when the set torque value is
reached
■Supports the switching of four units(N.m-ft.Ib-in.Ib-kg.cm).
■Newly upgraded color screen with clearer display.
■Equipped with button lock function, it can effectively prevent accidental touch during operation.
■Has a data-storage function for easy traceability.
